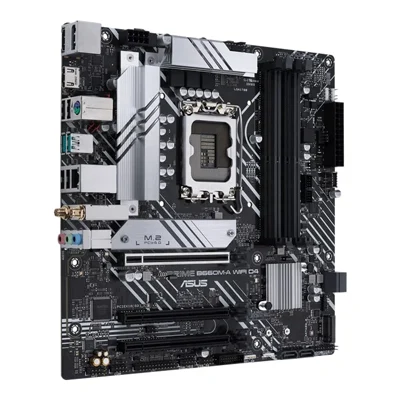

Phù hợp cho: ASUS PRIME B660M-A (WIFI) D4 là mainboard microATX chipset Intel B660 cho CPU Intel thế hệ 12, 4 khe DDR4 tối đa 128GB, 2 khe M.2, 4 cổng SATA 6Gb/s, WiFi 6. Phù hợp lắp PC văn phòng, học tập, gaming tầm trung cần WiFi sẵn. Board dùng RAM DDR4, không lắp được DDR5; cần vỏ case hỗ trợ microATX.
Tên Hãng: Asus
Model: B660M-A Wifi DDR4
CPU hỗ trợ: Intel
Chipset: B660
RAM hỗ trợ: 4 x DIMM, Max. 128GB, DDR4
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
Khe cắm mở rộng: Intel® 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
intel® B660 Chipset *
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x1 mode)
Ổ cứng hỗ trợ: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset **
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports
Cổng kết nối (Internal): Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 header support 1 USB 2.0 port
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Cổng kết nối (Back Panel): 2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless: 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Kích cỡ: microATX
24.4cm x 24.4cm
