Phù hợp cho: TP-Link MC220L là bộ chuyển đổi quang điện Gigabit dùng khe SFP, chuyển 1000BASE-SX/LX/LH sang 1000Base-T, khoảng cách 0,55 km với cáp multi-mode và 10 km với single-mode. Phù hợp kéo mạng Gigabit giữa các tòa nhà, các tủ mạng xa nhau. Cần mua thêm module SFP đúng loại sợi quang và bước sóng.

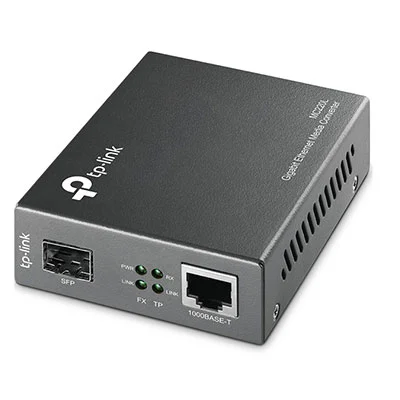

Thông số kỹ thuật Bộ chuyển đổi quang điện TP-Link MC220L
- Gigabit Single-mode SFP Media Converter TP-LINK MC220L
- The TP-Link MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the TP-Link MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
- Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
